The EVS Solder Recovery System enables PCB manufacturers to recycle solder onsite directly from their wave solder machines. Without the use of any chemicals or additives the system typically cuts solder purchases in half while reducing dedrossing times and increasing safety.

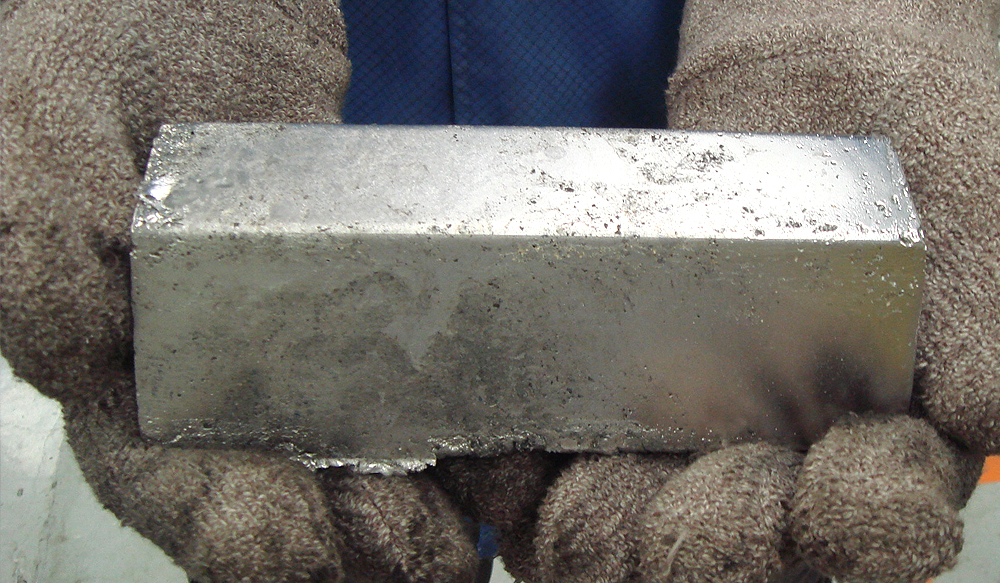

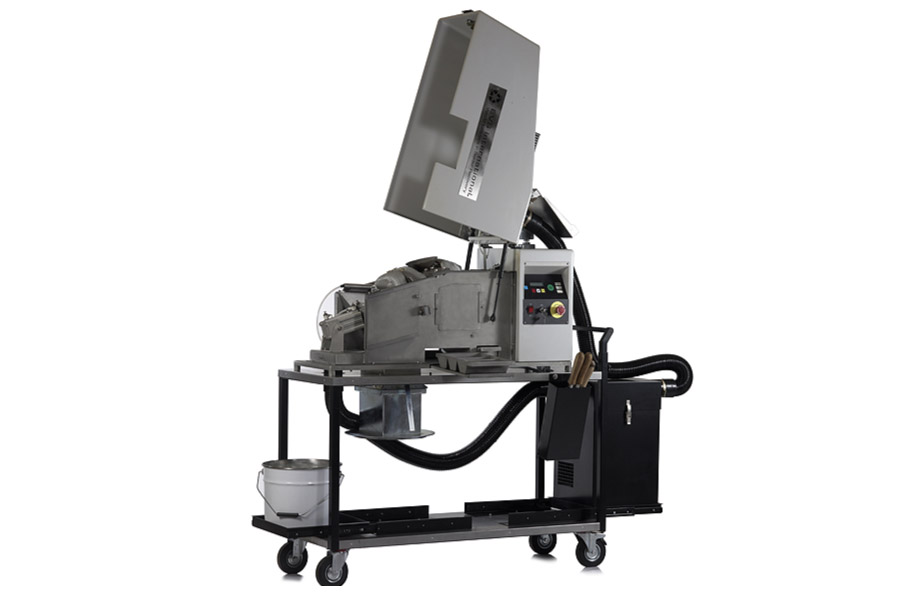

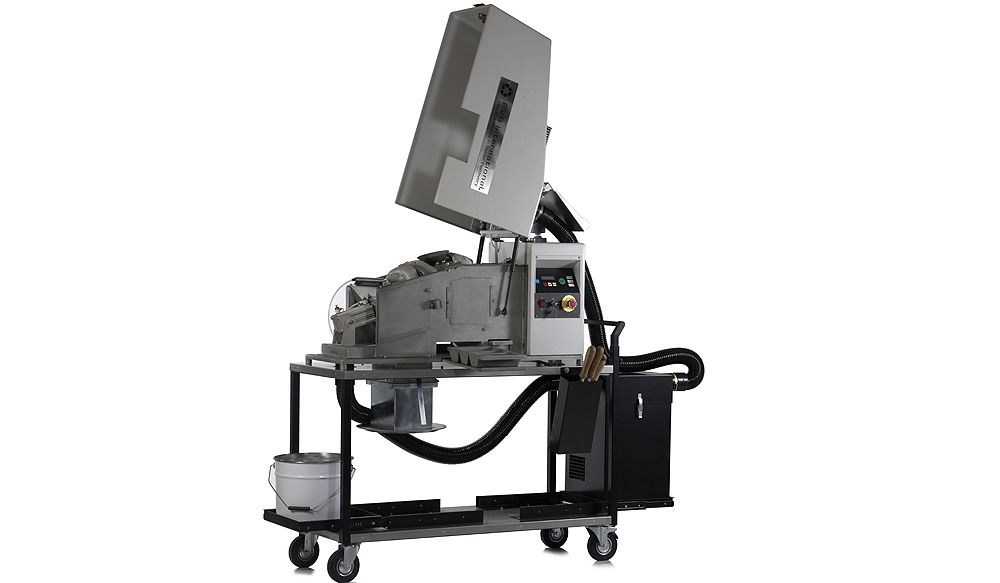

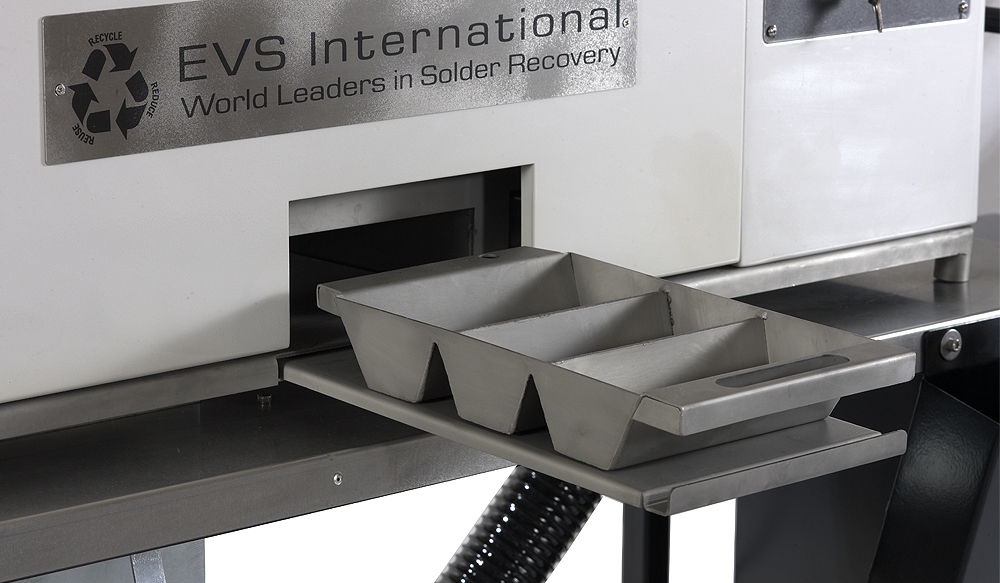

Recycled Solder IngotIngot TrayEVS openEVS Solder Recovery System
Basic Specifications
| DIMENSIONS:
1397mm L x 607mm W x 1423 mm* H (55” L x 24” W x 56” H*)
*Does not include light tower height
|
| CONTROL: PLC with LCD Screen |
| POWER REQUIREMENTS: 210 - 240 V AC, 50/60 Hz single phase, 2.2 KVA |
| AIR: 655 kPa (95 PSI) @ 56.6 LPM (2 CFM) |
| CERTIFICATION: CE |
