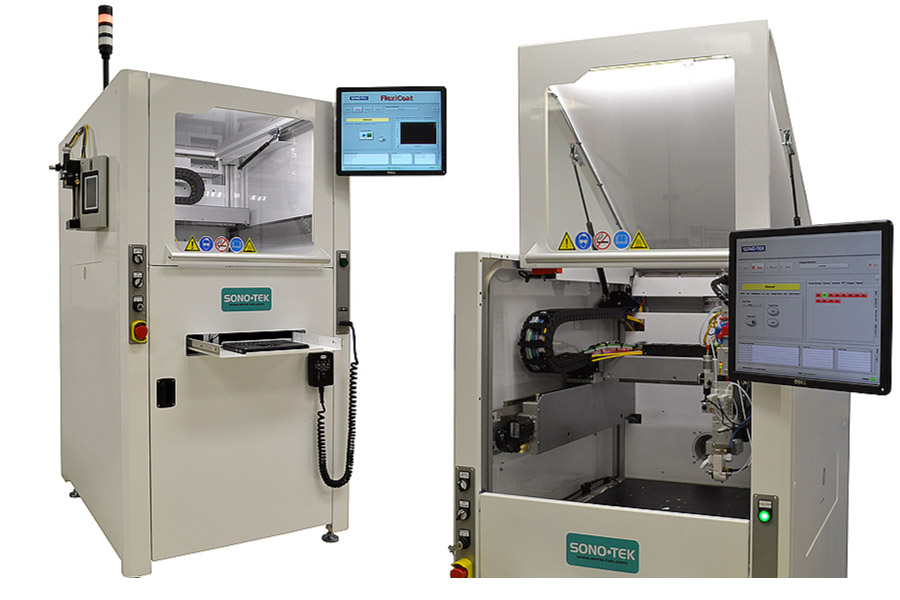

Fully automated, programmable standalone system with coordinated XYZ motion control using Windows-based software and user-friendly teach pendant with trackball. Versatile mid to high-volume or pilot scale production thin film coatings. Can be configured with standard SMEMA conveyor for inline coating solutions.
Visit How Ultrasonic Nozzles Work to learn more about the unique capabilities of ultrasonic spray.
Basic Specifications
| DIMENSIONS: 863 mm W x 1612 mm H x 1168 mm D (34” W x 63.5” H x 46” D) |
| WORK AREA*:
500 x 500 x 100 mm (19.69” x 19.69” x 3.94”)
Larger configurations available up to 1.4x1.4 m
*Note: Work area may be reduced depending upon system configuration
|
| CONTROL: Windows-based (PC included) |
| POWER REQUIREMENTS: 120V, 220V +/- 10%, 50-60 Hz |
| AIR: 551.6 kPa (80 PSI) dry unlubricated air |
| MOTORS: Servo |
| CERTIFICATION: CE |
| ULTRASONIC NOZZLE DESIGNS: AccuMist, Impact, Vortex, MicroMist, or Propel |
