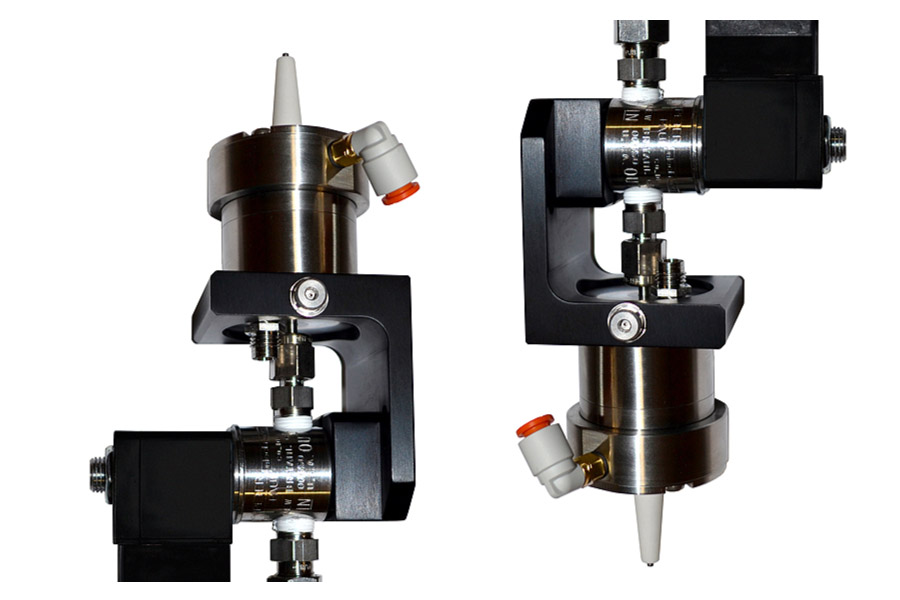

Designed to replace other fluxing systems in selective fluxing applications, Sono-Tek’s ultrasonic selective fluxing system offers the highest degree of accuracy and fine line control. Controlled velocity spray will give maximum top side fill and lower maintenance in selective fluxing applications. Compatible with ALL fluxes, SelectaFlux easily retrofits into all major selective solder machines.
Spray up or downSonoFlux Ultrasonic Spray Fluxing SystemsSelectaFlux
Basic Specifications
| ELECTRONICS BOX DIMENSIONS: 370mm W x 408mm H x 266mm D (14.6” W x 16” H x 10.5” D) |
| SPRAY WIDTH: 2 - 8 mm (0.70 - 0.50”) or 4 - 30 mm (0.20 - 1.50”) |
| CONTROL: LCD touchscreen |
| FLUX DELIVERY: Pressurized flux tank or high precision gear pump |
| EXTERNAL TRIGGER INPUT: Switch closure, 5 VAC/DC 24 VAC/DC |
| AIR: 0-14 kPa (0-2 PSI) typical |
| CERTIFICATION: CE |
| ULTRASONIC NOZZLE DESIGNS: High transfer AccuMist |
