Designed to be retrofitted onto existing lines, SonoBraze is ideal for spraying aluminum brazing fluxes onto targeted areas. The system is a complete solution that includes the non-clogging ultrasonic nozzle(s), flux recirculation, and controls. SonoBraze is ideally suited for Paint F Flux and standard brazing flux, and typically reduces consumption by 60% while reducing maintenance by over 90%.
Visit How Ultrasonic Nozzles Work to learn more about the unique capabilities of ultrasonic spray.
SonoBraze softwareSonoBraze Air Shaping SystemsSonoBraze systemSonoBraze Flux Brazing System
Basic Specifications
| CONTROLLER DIMENSIONS: 191cm H x 76cm W x 77cm D (75” H x 30” W x 30.4” D) |
| SPRAY WIDTH (PER NOZZLE): AccuMist: 6-40mm (0.070 - 1”), Impact: Up to 160mm (6”), Extend: Up to 240mm (9") |
| CONTROL: Touch screen embedded PC |
| POWER REQUIREMENTS: 120, 220 V +/-10%, 50-60Hz |
| AIR: 2-20 LPM (.07-.71 CFM) or 20-75 LPM (.71 – 2.65 CFM), 621 kPa (60 PSI) clean, dry and oil-free |
| CERTIFICATION: CE |

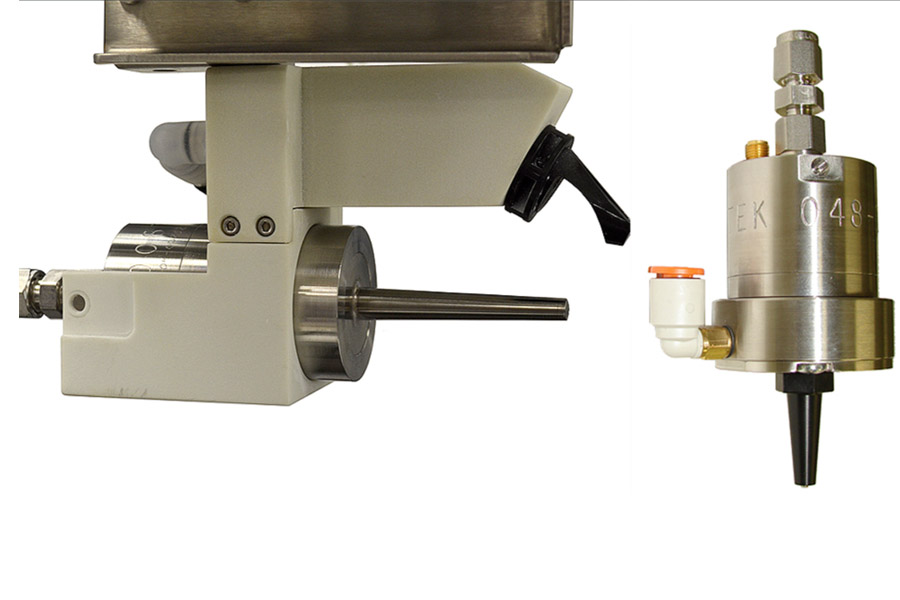

| ULTRASONIC NOZZLE DESIGNS: AccuMist, Impact, Extend |
