Stationary ultrasonic spray fluxing system for low mix/dedicated lines with medium to high volume. No moving parts mean ultra-low maintenance and the highest reliability and is compatible in all major wave solder machines. All SonoFlux systems feature non-clogging, repeatable, low maintenance ultrasonic spray performance with up to 80% reduction in flux consumption.

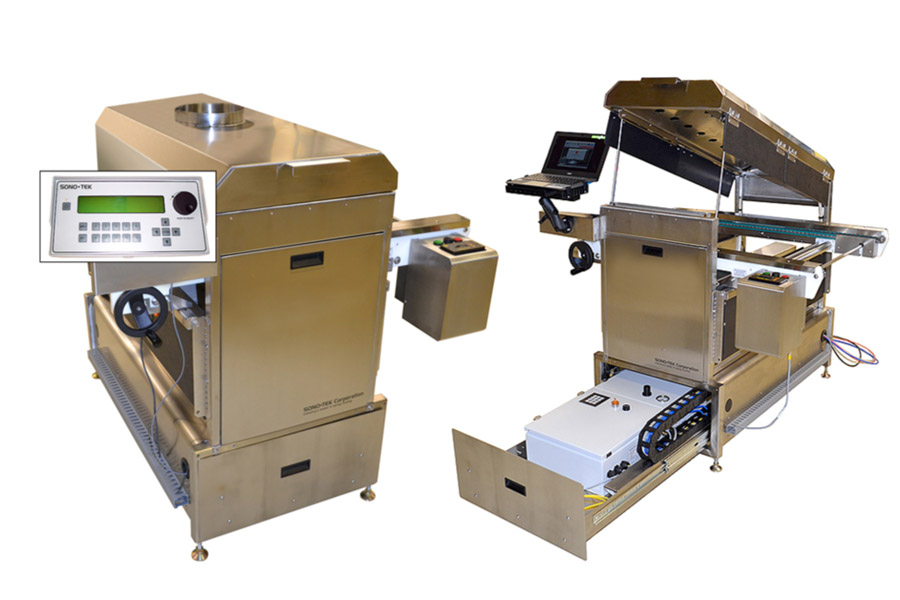

SonoFlux 2000F 610SonoFlux 2000F ControllerSonoFlux 2000F Standalone SystemSonoFlux Ultrasonic Spray Fluxing SystemsSonoFlux2000F
Basic Specifications
| SPRAY ASSEMBLY DIMENSIONS:
330mm (13”) configuration - 514.4mm W X 330.3mm L x 193.5mm H (20.25” W x 13” L x 7.62” H) or 610mm (24”) configuration - 514.4mm W X 610mm L x 193.5mm H (20.25” W x 24” L x 7.62” H)
|
| PCB WIDTH RANGE: 50-330mm (2–13”) or 50-610mm (2-24”) |
| CONTROL: Backlit LCD PLC with menu-driven 17-key keypad and wheel encoder |
| FLUX DELIVERY: High precision gear pump |
| POWER REQUIREMENTS:
110/120 VAC, 50/60 Hz or 220/240 VAC, 50/60 Hz
Single phase, 750 VA max
|
| AIR: 483-1034 kPa (70-150 PSI) @ 85 LPM (3 CFM) |
| CERTIFICATION: CE |
| ULTRASONIC NOZZLE DESIGNS: High transfer dual jet design |
