An economical reciprocating ultrasonic spray fluxing system for medium to high mix lines. Easy integration and operation with all major wave solder machines. All SonoFlux systems feature non-clogging, repeatable, low maintenance ultrasonic spray performance with up to 80% reduction in flux consumption.
High Impact Flux HeadStandalone EZ SystemUltrasonic Spray FluxingSonoFlux Ultrasonic Spray Fluxing SystemsSonoFlux vs Pressure Spray Before & AfterSonoFlux EZ Ultrasonic Spray Fluxing System
Basic Specifications
| RECIPROCATOR DIMENSIONS: 860mm W x 190mm H x 280mm D (34” W x 7.5” H x11” D) |
| PCB WIDTH RANGE: 50-457 mm (2–18”) |
| CONTROL: PLC with LCD Screen |
| FLUX DELIVERY: Pressurized flux tank |
| POWER REQUIREMENTS: 110/120 VAC, 50/60 Hz or 220/240 VAC, 50/60 Hz, Single phase, 900 VA max |
| AIR: 344.7-689.5 kPa (50-100 PSI) @ 170LPM (6 CFM) |
| MOTORS: Stepper motor with belt drive |
| CERTIFICATION: CE |

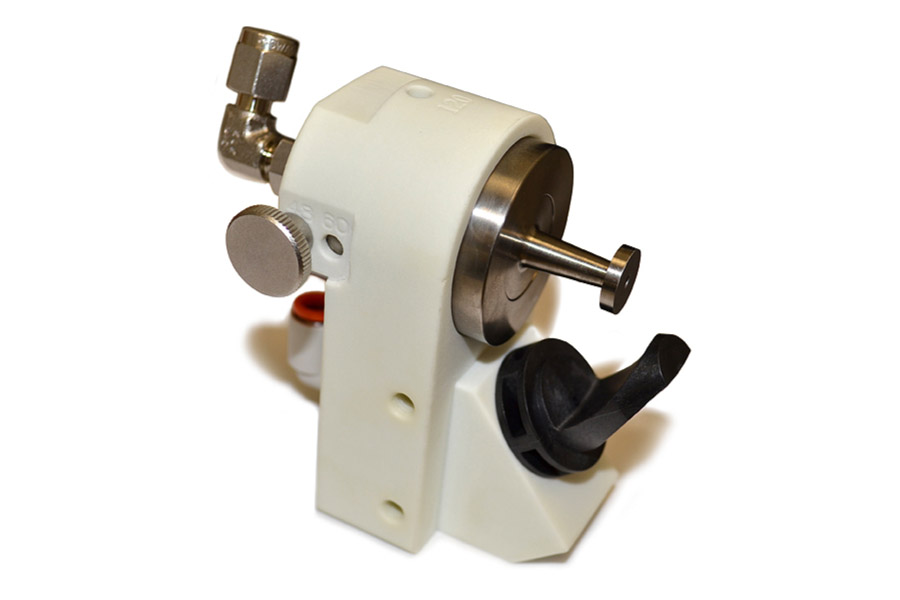

| ULTRASONIC NOZZLE DESIGNS: Impact Flux head for maximum top side fill |
